Stevekraft.com Computer's

Stevekraft.com Computer Configurations

As of

Total Network Disk Storage = 29.575TB
Total RAM = 74.5GB
Total CPU Speed = 79.7GHz

DESKTOPS
THOR - The Domain Controller for Stevekraft.com - Flatbed scanner connected

Windows Server 2008 R2 Enterprise 64-bit SP1
Rosewill Gaming ATX Full Tower Computer Case THOR V2 Black
OCZ Fatal1ty 750W Modular Gaming 80PLUS Bronze Power Supply
GIGABYTE GA-990FXA-UD3 AM3+ AMD 990FX SATA 6Gb/s USB 3.0 ATX AMD Motherboard
AMD FX-8150 FX 8-Core Black Edition Processor (FD8150FRGUBOX)
Corsair XMS3 32GB (4x8GB) DDR3 1333 MHz (PC3 10666) Desktop Memory (CMX32GX3M4A1333C9)
Asus 24x DVD-RW Serial-ATA Internal OEM Optical Drive DRW-24B1ST (Black)
EVGA GeForce GT 620 2048MB GDDR3, DVI, VGA and HDMI Graphics Card 02G-P3-2629-KR
Crucial M500 960GB SATA 2.5-Inch 7mm (with 9.5mm adapter/spacer) Internal Solid State Drive CT960M500SSD1
4 Seagate Desktop HDD 4 TB SATA 6Gb/s NCQ 64MB Cache 3.5-Inch Internal Bare Drives ST4000DM000

MSNBC - Video Encoding, Website Editing, Torrenting, Ustream Streaming

Windows 10 Professional 64-bit

Raygo R12-40835 ATX Mid-Tower Case - ATX/Micro-ATX 1x External 3.5" Bays, 4x External 5.25" Bays, 6x Internal 3.5" Bays, 2x Fron USB Ports,

EVGA 500 W1 80+, 500W Power Supply 100-W1-0500-KR

ECS IC780M-A Motherboard - AMD 770, Socket AM2+, ATX, DDR2, Dual Channel, PCIe, RAID

AMD Phenom X4 9850 Quad Core Processor HD9850XAJ4BGH - 2.50GHz, 4MB Cache, 2000MHz (4000 MT/s) FSB, Agena, Quad-Core, OEM, Socket AM2+, Processor

Corsair Cooling Hydro-Series All-in-One High-Performance Liquid CPU Cooler CWCH60

2 Patriot PSD22G80026 2048MB PC6400 DDR2 Memory - 800MHz, 1x2048MB, Non-ECC, Unbuffered

MemoryTek 4GB (2x 2GB) DDR2 PC2-6400 PC2-6400 800Mhz 240 Pin DIMM (Desktop Memory) 4 GB KIT

EVGA GeForce GTX 550 Ti FPB 1024 MB GDDR5 PCI Express 2.0 2DVI/Mini-HDMI SLI Ready Graphics Card, 01G-P3-1556-KR

Crucial M550 256GB 2.5-Inch 7mm SSD SATA (with 9.5mm adapter) Internal Solid State Drive CT256M550SSD1

Form factor	Low Profile Desktop
CPU options	Intel Core i5 4590 @ 3.30GHz Haswell 22nm Technology
Chipset	Q87
Dedicated GPU *	AMD Radeon HD 7650A
RAM	Dual-Channel DDR3 @ 799MHz (11-11-11-28)
RAM slots	4
RAM	16 GB
USB ports	(4x)USB-A 3.0; (6x)USB-A 2.0;
Video ports	(2x) DisplayPort 1.2; VGA;
Other ports	(2x) PS2; RJ45; Hdph; Mic; Line-Out; Line-In;
Optional ports	Media card reader (USB 3.0);
SATA ports	1
PCI slots	Mobile PCI Express Module; mPCIe 2.0 x1 (WiFi);
M.2 slots	M.2 (mSATA only);
Drive bays	2.5in; 5.25in (slim);
PSU	135/180 W
Weight	3.1 kg (6.8 lb)
Hard Drives	931GB Hitachi HGST HTS541010A9E680 (SATA ) 465GB Hitachi HGST HTS725050A7E635 (SATA )

2 inateck KT4007 Dual Port USB 3.0 PCI Express Cards

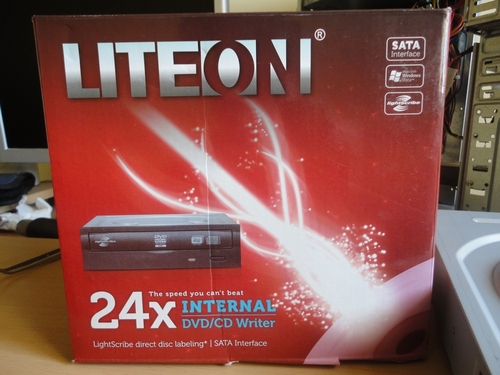

Lite-On LightScribe 24X SATA DVD+/-RW Dual Layer Drive IHAS424-98 - Retail (Black)

Security– TV Viewing/Vaughn.TV Streaming, FTP Storage

Windows 10 Professional 64-bit
PowerUp! G54-40840 XL Mid-Tower ATX Case
OCZ ZS Series 550W 80 Plus Bronze Power Supply
ASUS SABERTOOTH 990FX R2.0 AM3+ AMD 990FX SATA 6Gb/s USB 3.0 ATX AMD Motherboard with UEFI BIOS
AMD FX-8150 FX 8-Core Black Edition Processor (FD8150FRGUBOX)
Zalman Hydraulic Bearing CPU Cooler
Corsair Vengeance Blue 16 GB DDR3 SDRAM Dual Channel Memory Kit CMZ16GX3M4A1600C9B
ASUS PH-GTX1060-3G GeForce GTX 1060 3GB Phoenix Fan Edition VR Ready HDMI DP DVI Graphics Card
AVertv HD DVR High Definition/Analog Video Capture Card PCI-E (C027)
ASUS BW-12B1ST/BLK/G/AS 12X Blu-ray Internal Burner with Disc Encryption, Black
Samsung 860 EVO 500GB 2.5 Inch SATA III Internal SSD (MZ-76E500B/AM)
1 Seagate 4TB NAS HDD SATA 6Gb/s NCQ 64MB Cache 3.5-Inch Internal Bare Drive (ST4000VN000)
1 Seagate Desktop HDD 4 TB SATA 6Gb/s NCQ 64MB Cache 3.5-Inch Internal Bare Drive ST4000DM000
1 Seagate ST2000DM001 Barracuda 7200RPM 2 TB SATA 6 GB/s
1 Hitachi HDS722020ALA330 (0F10311) 2TB 7200 RPM 32MB Cache SATA 3.0Gb/s 3.5" Internal Hard Drive Bare Drive

Radio - Encodes the music stream for Stevekraft.com

Windows 10 Professional 64-bit

Form factor Low Profile Desktop

CPU options Intel Core i5 4590 @ 3.30GHz
Haswell 22nm Technology

Chipset Q87

Dedicated GPU * AMD Radeon HD 7650A

RAM Dual-Channel DDR3 @ 799MHz (11-11-11-28)

RAM slots 4

RAM 16 GB

USB ports (4x)USB-A 3.0; (6x)USB-A 2.0;

Video ports (2x) DisplayPort 1.2; VGA;

Other ports (2x) PS2; RJ45; Hdph; Mic; Line-Out; Line-In;

Optional ports Media card reader (USB 3.0);

SATA ports 1

PCI slots Mobile PCI Express Module; mPCIe 2.0 x1 (WiFi);

M.2 slots M.2 (mSATA only);

Drive bays 2.5in; 5.25in (slim);

PSU 135/180 W

Weight 3.1 kg (6.8 lb)

Hard Drives 931GB Hitachi HGST HTS541010A9E680 (SATA ) 465GB Hitachi HGST HTS725050A7E635 (SATA )

LAPTOPS

Halloweenlaptop - Generate Halloween Music on the front porch

Windows 10 Professional 64-bit
Acer Aspire 5734Z (uPGA-478)
Intel Pentium T4500 @ 2.30GHz
3.00GB Dual-Channel DDR3 @ 29677MHz (6-6-6-15)
Mobile Intel 4 Series Express Chipset Family
233GB Western Digital WDC WD2500BEVT-22A23T0 ATA Device (SATA)
Slimtype DVD A DS8A4SH ATA Device
Atheros AR8132 PCI-E Fast Ethernet Controller

10Laptop - Dad’s Mobile Computer

Windows 10 Professional 64-bit
Acer Aspire 5920-6864
15.4 WXGA Acer Crystal Brite LCD
Up to 358MB Mobile Intel Graphic Media Accelerator X3100
3GB DDR Ram
100 GB 7200 rpm SATA Hard Drive
DVD Super Multi DL DVD Burner Drive
802.11 a/b/g WLAN WIFI Stopped Working replaced with the next item.
TP-Link TL-WN725 150Mbps Wireless N Nano USB Adapter
Built in Subwoofer
Acer Crystal Eye Camera built-in above displaySD, XD,
Memory stick Pro Memory card reader
4 usb 2.0 portsFirewire port
Quick Launch buttons on sides of keyboard for access Windowns Media Center, Internet, Mail, and WIFI antenna on/off button

OTHER COMPUTERS

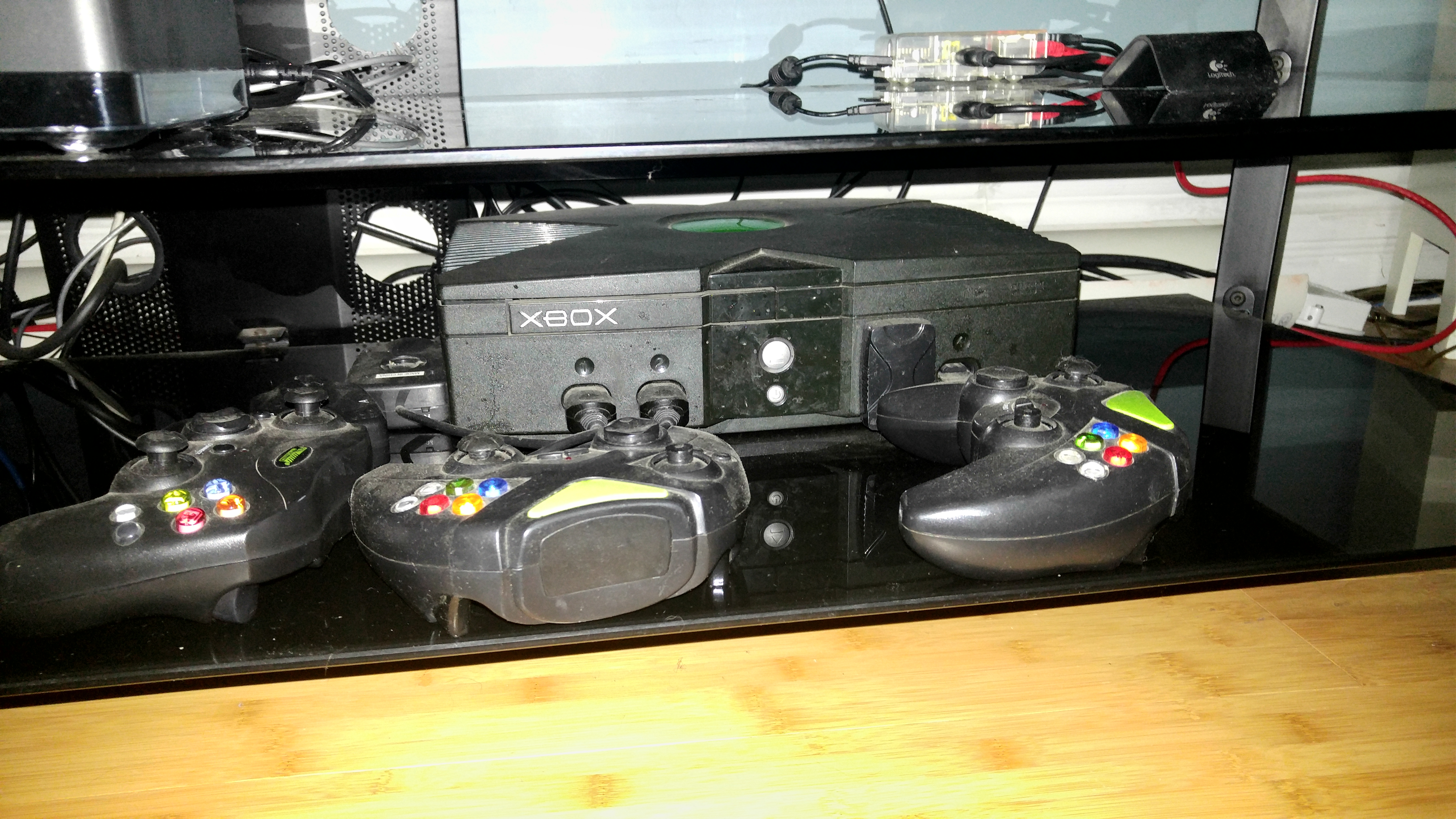

XBOX

Running XBOX Media Center Operating System - plays classic games on the Toshiba 65" TV

Features

Dimensions (WxDxH):                30 cm x 18 cm x 8 cm

Audio Output:                                 Stereo

Expansion Slots Total:                2 ( 2 ) x memory

Max. Resolution:                           32-bit color / 1920 x 1080

Processor:                                     1 x Intel Pentium III 733 MHz

Video Output:                                 NVIDIA Xbox GPU - 256-bit - 2D/3D graphics acceleration, NVidia Xbox GPU - 256-bit - 2D/3D graphics acceleration

Weight                                            4 kg
Hard Drive                                       200 GB IBM Ultra ATA 133 7200-RPM HD

Connections 1 x Xbox AV output ( Xbox AV connector ), 4 x game controller, 1 x network ( RJ-45 )

Networked Via our Gigabit Fast Ethernet Network

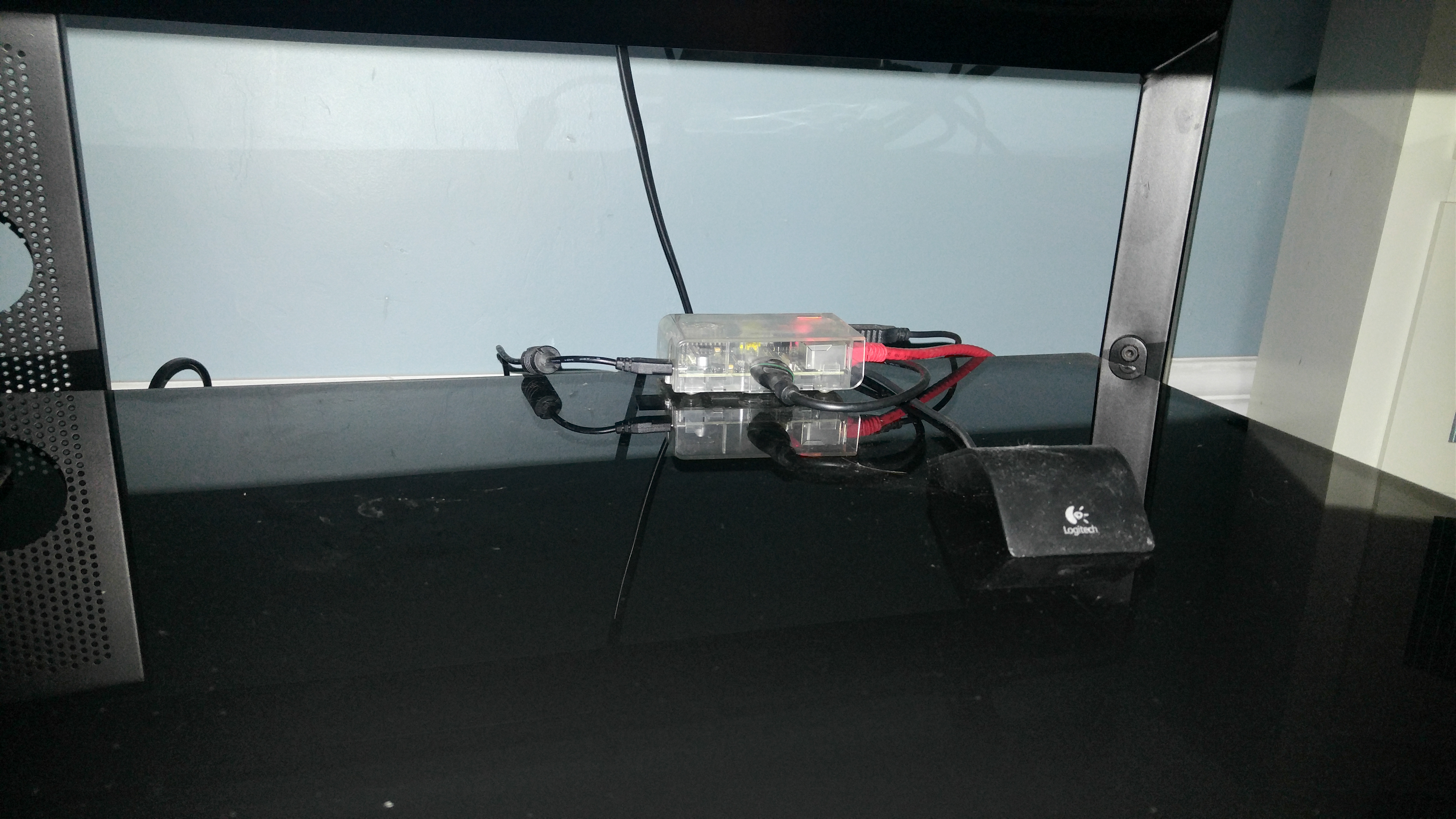

2 RaspberryPI Model B - Plays Media on the 65 inch Toshiba TV in the Living Room - Second one in Master Bedroom

RASPBIAN JESSIE WITH PIXEL Image with PIXEL desktop based on Debian Jessie

SoC: Broadcom BCM2837
CPU: 4× ARM Cortex-A53, 1.2GHz
GPU: Broadcom VideoCore IV
RAM: 1GB LPDDR2 (900 MHz)
Networking: 10/100 Ethernet, 2.4GHz 802.11n wireless
Bluetooth: Bluetooth 4.1 Classic, Bluetooth Low Energy
Storage: microSD
GPIO: 40-pin header, populated
Ports: HDMI, 3.5mm analogue audio-video jack, 4× USB 2.0, Ethernet, Camera Serial Interface (CSI), Display Serial Interface (DSI) US$ 35


SoC: Broadcom BCM2837 CPU: 4× ARM Cortex-A53, 1.2GHz GPU: Broadcom VideoCore IV RAM: 1GB LPDDR2 (900 MHz) Networking: 10/100 Ethernet, 2.4GHz 802.11n wireless Bluetooth: Bluetooth 4.1 Classic, Bluetooth Low Energy Storage: microSD GPIO: 40-pin header, populated Ports: HDMI, 3.5mm analogue audio-video jack, 4× USB 2.0, Ethernet, Camera Serial Interface (CSI), Display Serial Interface (DSI)	US$ 35

OTHER EQUIPMENT

Audio
Altec Lansing ACS48 Subwoofer System – Thor, Radio, MSNBC, and Security controlled by Startech.com 4-Port USB KVM Switch with Audio & USB Hub

Genius SP-HF1800A 50 W Three-way Hi-Fi Wood Speakers - Thor, Radio, MSNBC, and Security controlled by Startech.com 4-Port USB KVM Switch with Audio & USB Hub

Panasonic SA-TH920 DVD Home Theater

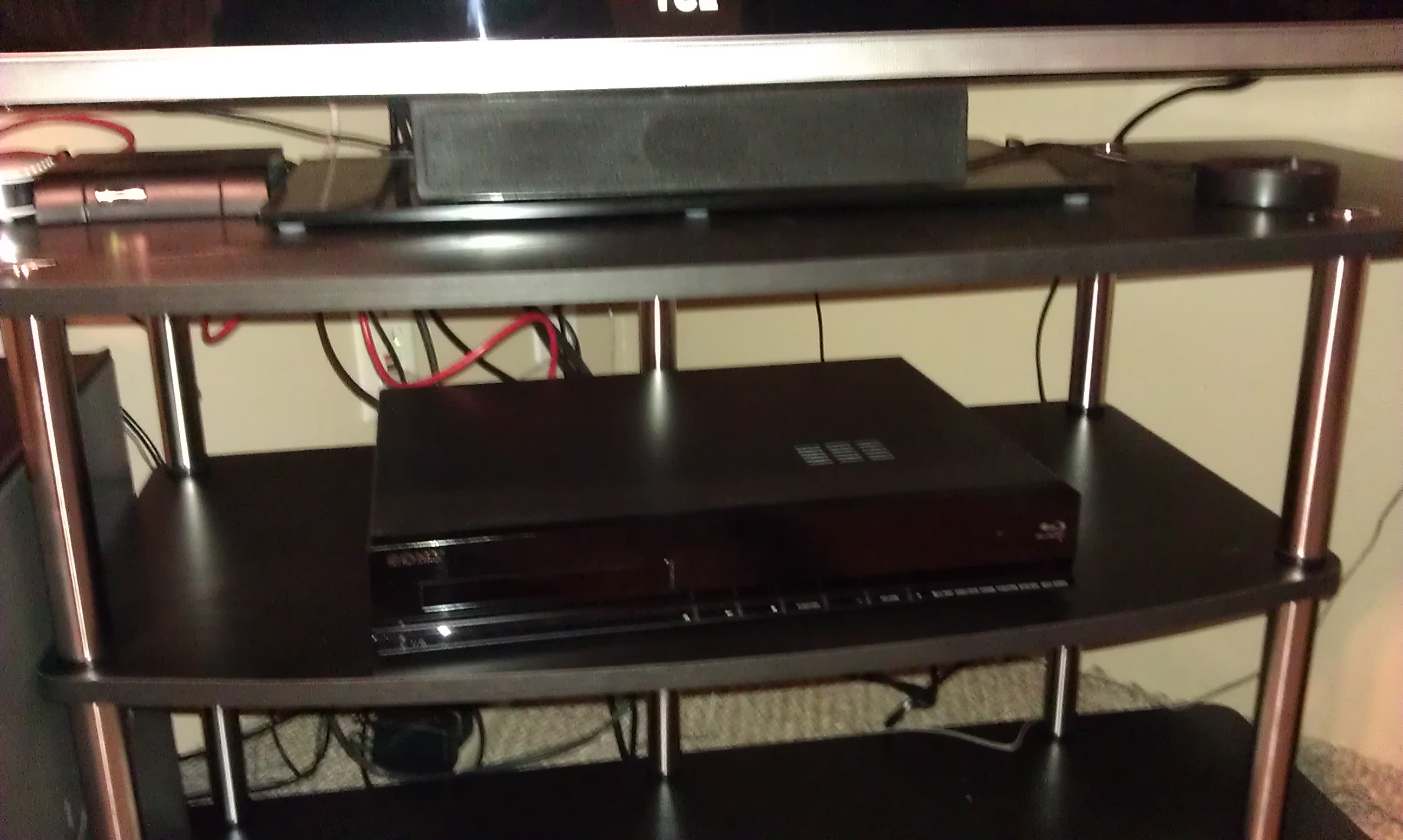

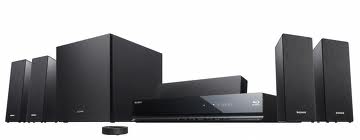

Sony BDV-E280 Blue-Ray/DVD Home Theater - Basement (Make Offer)

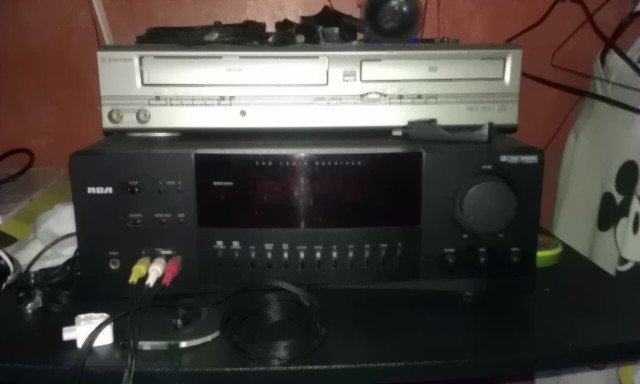

RCA Pro Logic Receiver - Dad's bedroom Unused at this time. (Make Offer)

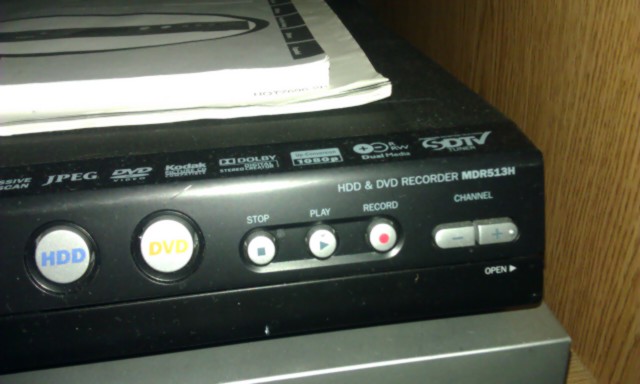

Magnavox MDR513H SD HDD & DVD Recorder - Basement Unused at this time. (Make Offer)

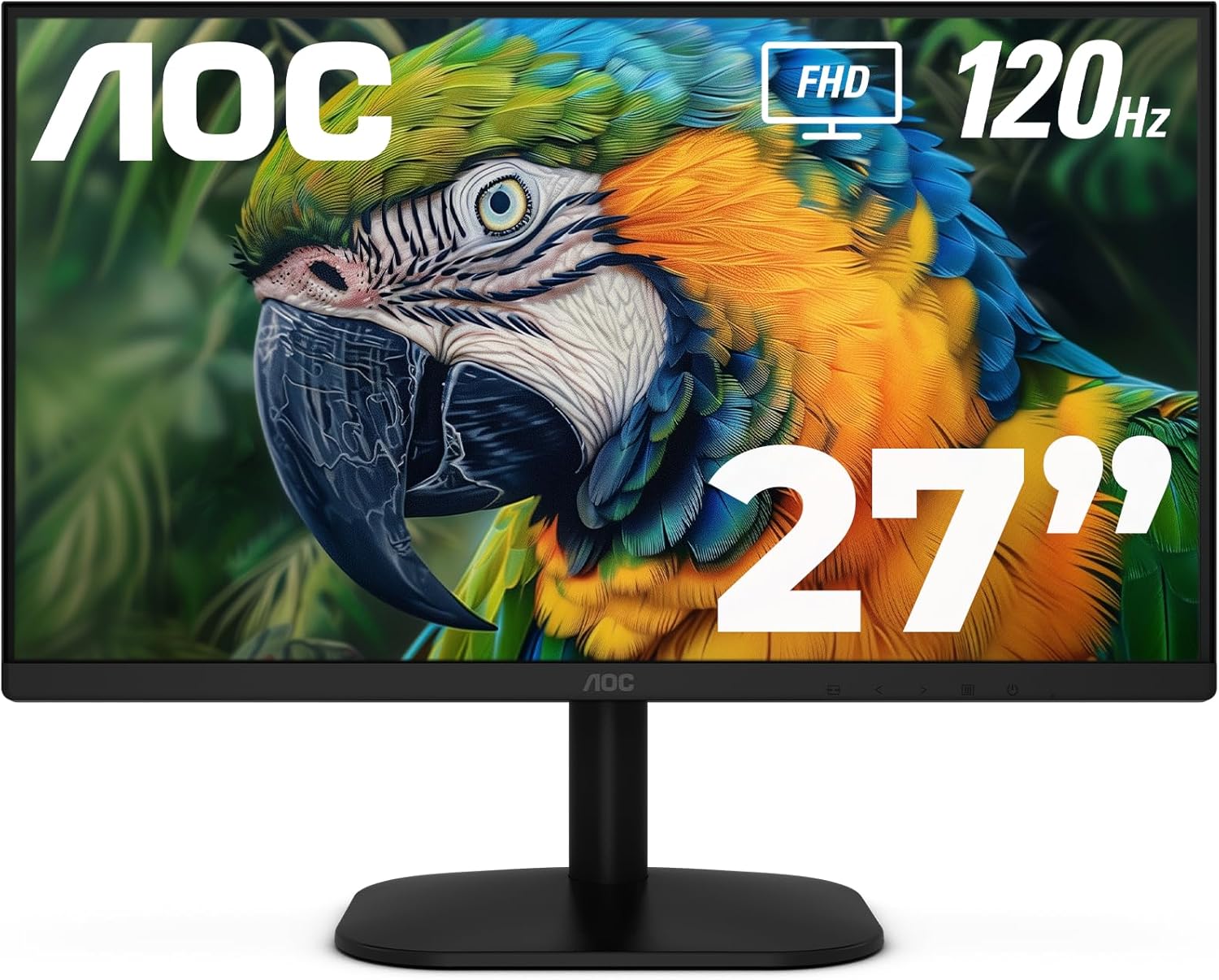

Monitors

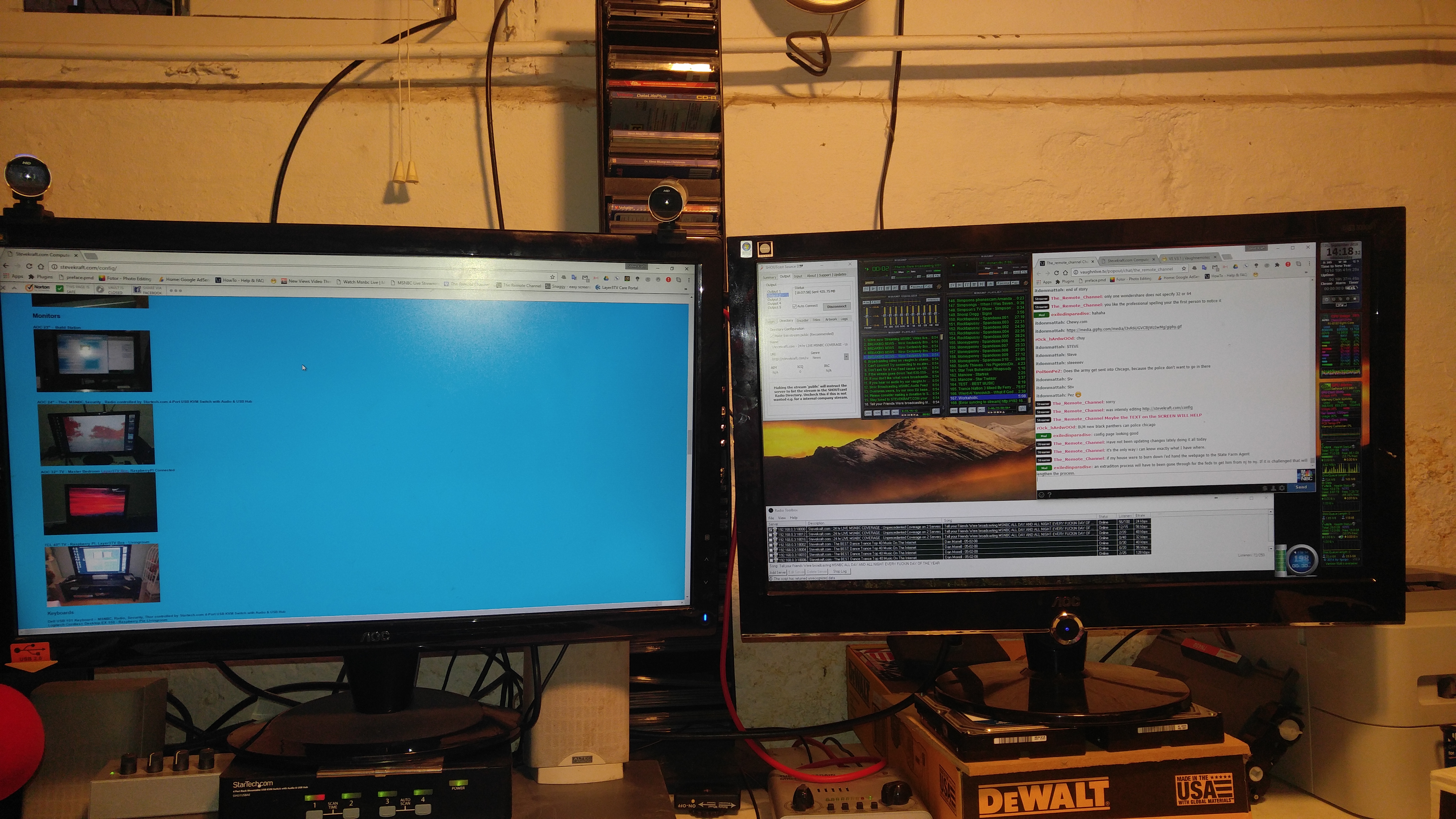

The Screen onm the left AOC 24" - Thor, MSNBC, Security's Left Screen and Radio controlled by Startech.com 4-Port USB KVM Switch withStartech.com 4-Port USB KVM Switch with Audio & USB Hub The screen on the right AOC 23" - Security's Right Screen

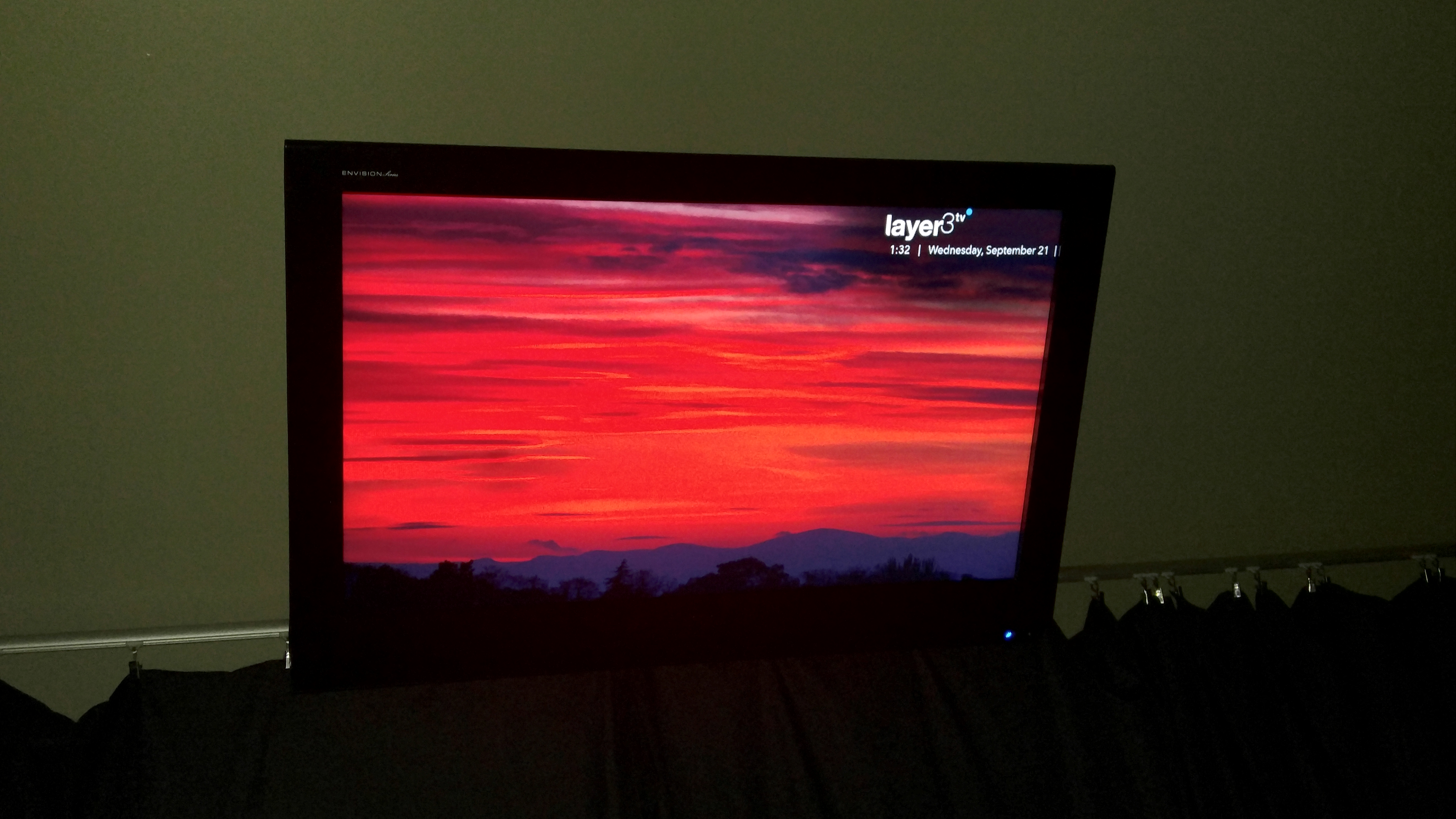

AOC 32" TV - Master Bedroom, RaspberryPI Connected

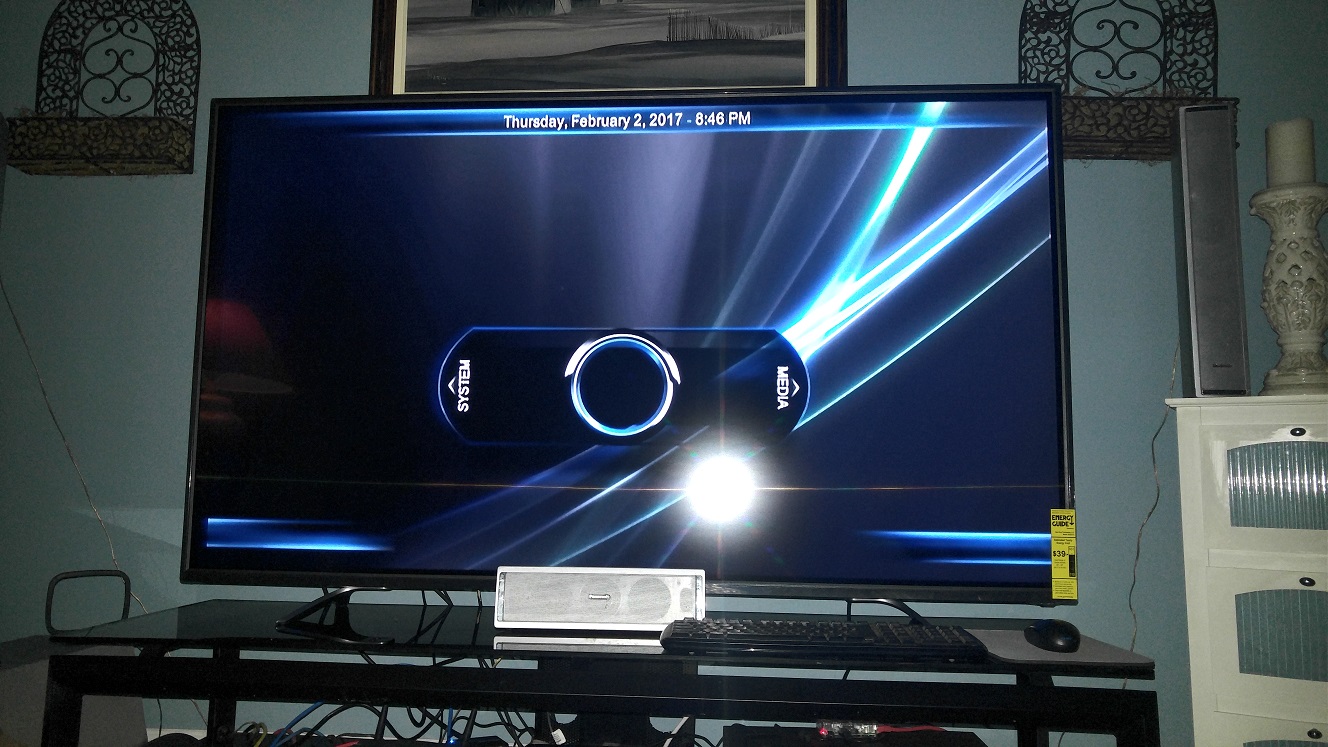

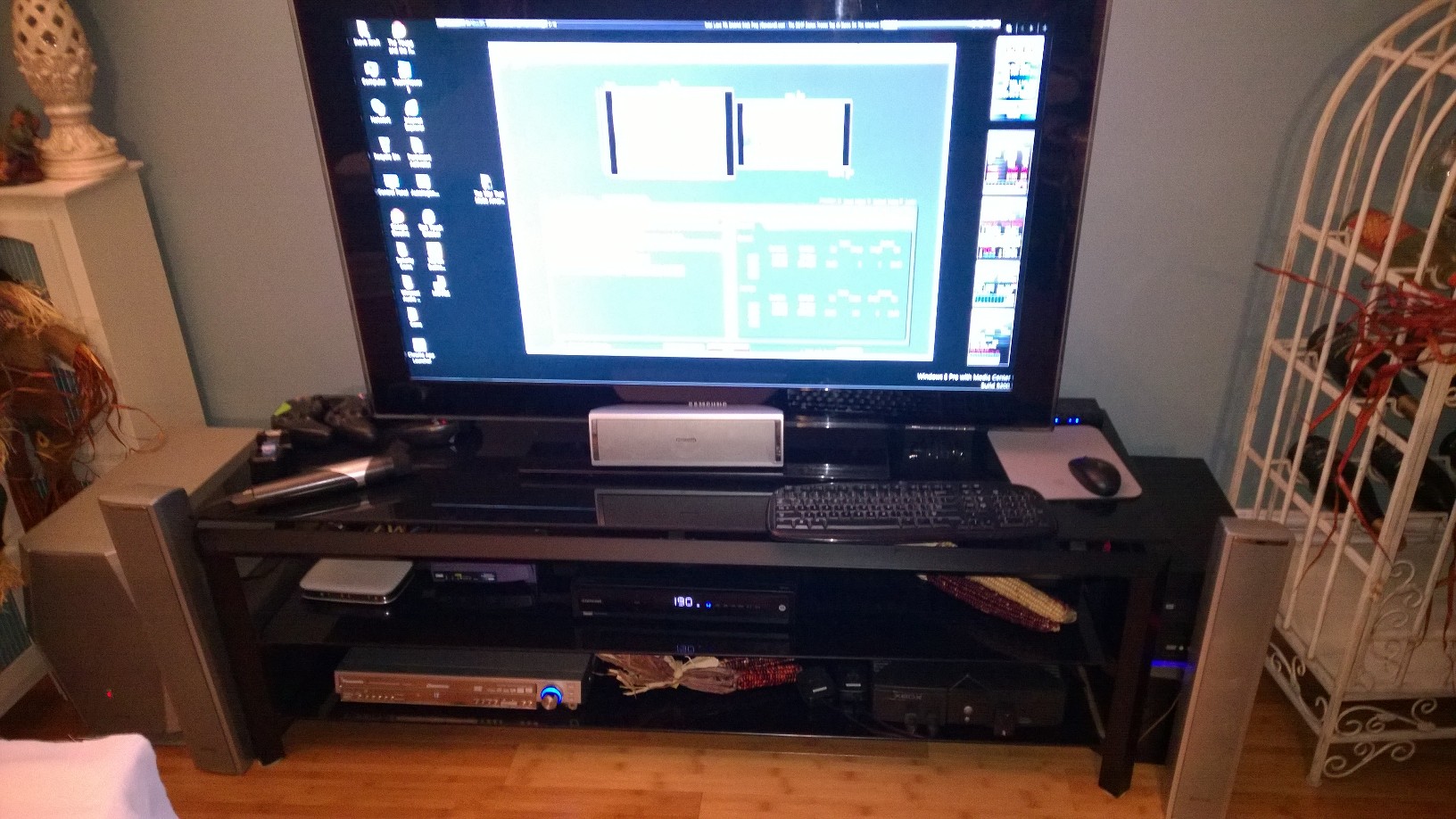

Toshiba 65" 4K TV - RaspberryPI 3, Orgional Xbox, Sony 5 Disk DVD Receiver, Comcast Xfinity X-1, Magnavox Hard Drive DVR - Livingroom

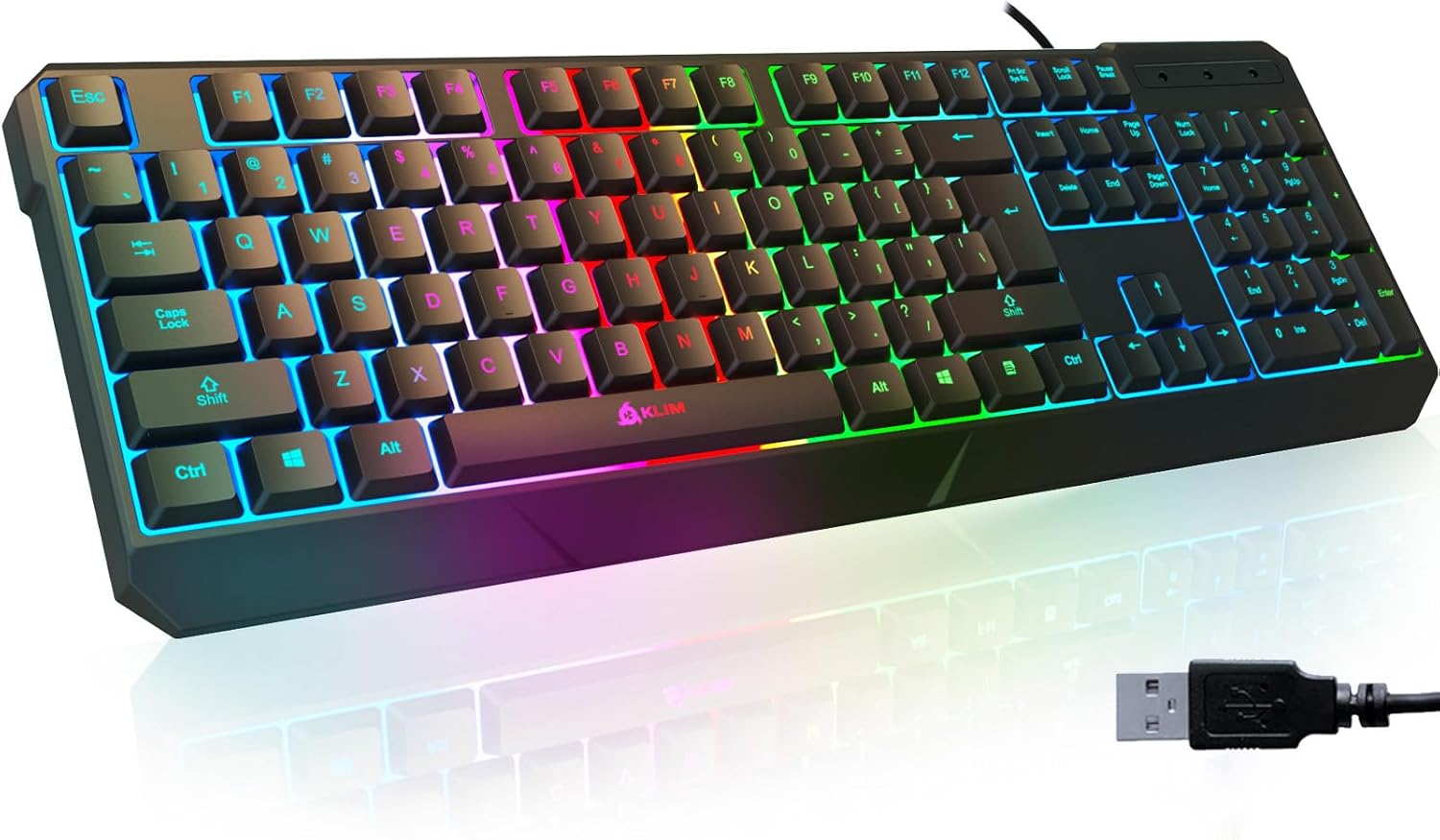

Keyboards

Dell USB 101 Keyboard – MSNBC, Radio, Security, Thor controlled by Startech.com 4-Port USB KVM Switch with Audio & USB Hub

Logitech Cordless Desktop EX 100 - Raspberry Pie Livingroom

Gear Head 107 Keyboard - Laptop, Repair Station

Mice

HP Optical Mouse – MSNBC, Radio, Thor and Security

Logitech Cordless Desktop Mouse EX 100 - Raspberry Pie Livingroom

Imaging and Printers
HP Scanjet G3100 USB Scanner - Connected to Thor Computer Via USB

2 Microsoft HD Lifecams - Connected to Security

Panasonic SDR-H40 40 GB HD & SD Camcorder w/ 42X Optical

Brother HL2220 laser Printer - connected to MSNBC

4 Lorex LW2301 Wireless Cameras with Infrared and one way audio Not Used at this time (Make Offer)

OOSSXX 8-Channel HD 1080P Wireless Network/IP Security Camera System

Network Components
AT&T Optical Termination Box connects the AT&T U-verse Gateway to the Fiber connected to the internet

AT&T U-verse Pace 5268ac Gateway Internet Wireless Modem Router - Connects our network to the internet at 1GB Upload and 1GB Download Speeds

5 Cisco ISB7500 Set Top Boxes - Accessing the media content from the AT&T Network 2 are connected via Ethernet 2 are wireless and one is connected via Coax

1 AT&T U-verse VAP2500 Wireless Access Point connects the wireless ISB 7500's to the AT&T U-verse Pace 5268ac Gateway

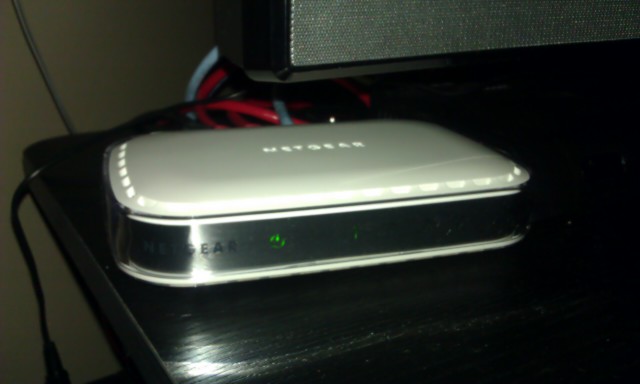

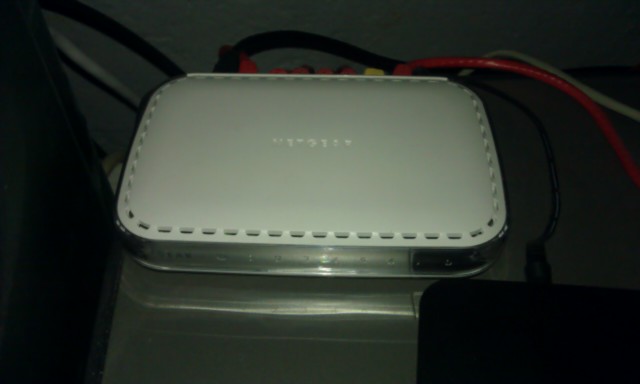

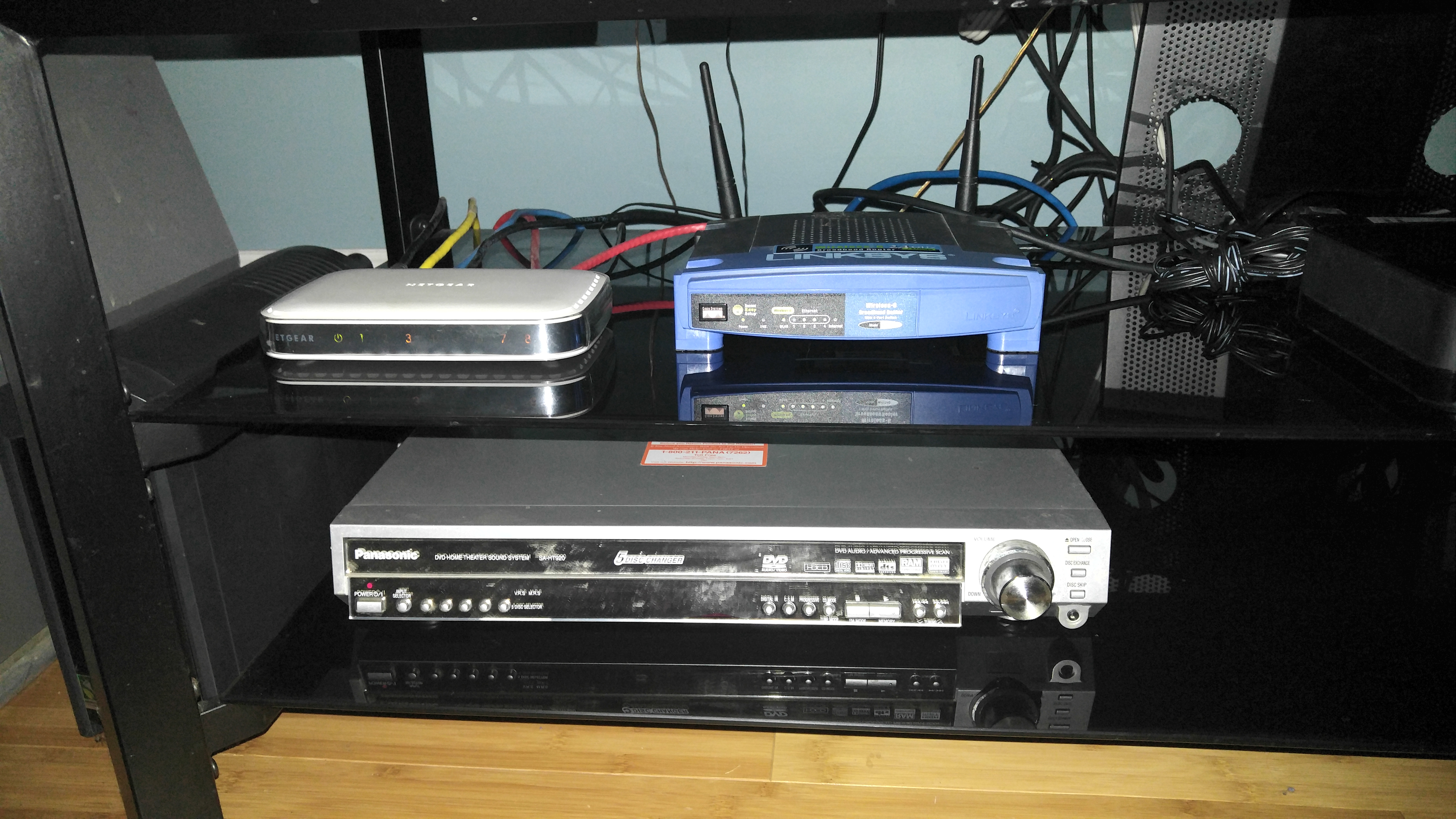

All computers connected via our 2 Netgear GS608 8 Port Gigabit Switches

Netgear GS605 5 Port Gigabit Switch - Connecting Movie Computer and Sony Blue-Ray Home Theater to the LAN

NETGEAR 5-Port Gigabit Ethernet 10/100/1000Mbps Switch (GS205) - Connect the upstairs and Gingers office equipment to the network

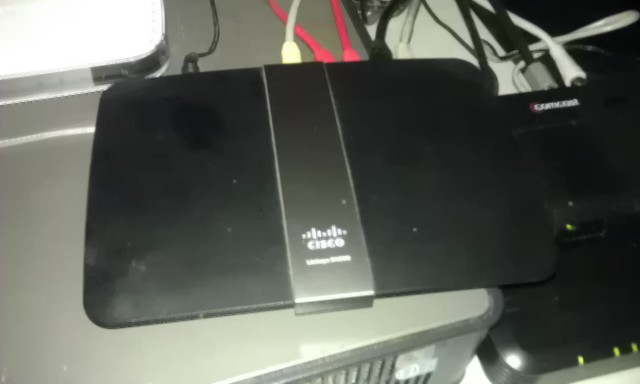

Linksys E4200 Maximum Performance Wireless-N Router Wireless router - 4-port switch Main Wireless Router Basement and Lower level of our house - This is unused at this time. (Make Offer)

Google Wifi system (set of 3) Mesh Wireless Access. Wireless Access for the entire house and outside.

Power Protection

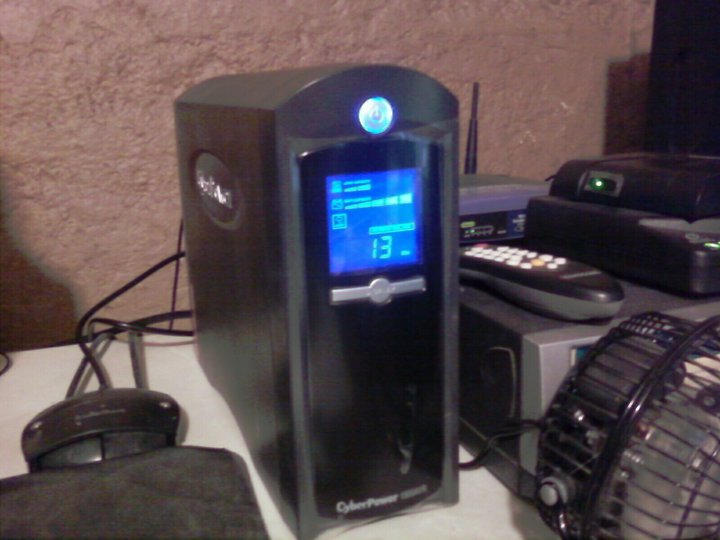

4 Cyberpower 1500AVR Battery Backup with Automatic Voltage Regulation - Server, MSNBC, Radio, Cable Router, Linksys Wireless Access Point, Security Computer and everything plugged into it. Sony Blue Ray Home theater, Netgear GS605 5 Port Gigabit Switch pretty much Everything computer and entertainment related in the basement and upstairs all equipment in Livingroom

TV Provider Currently AT&T U-verse U200

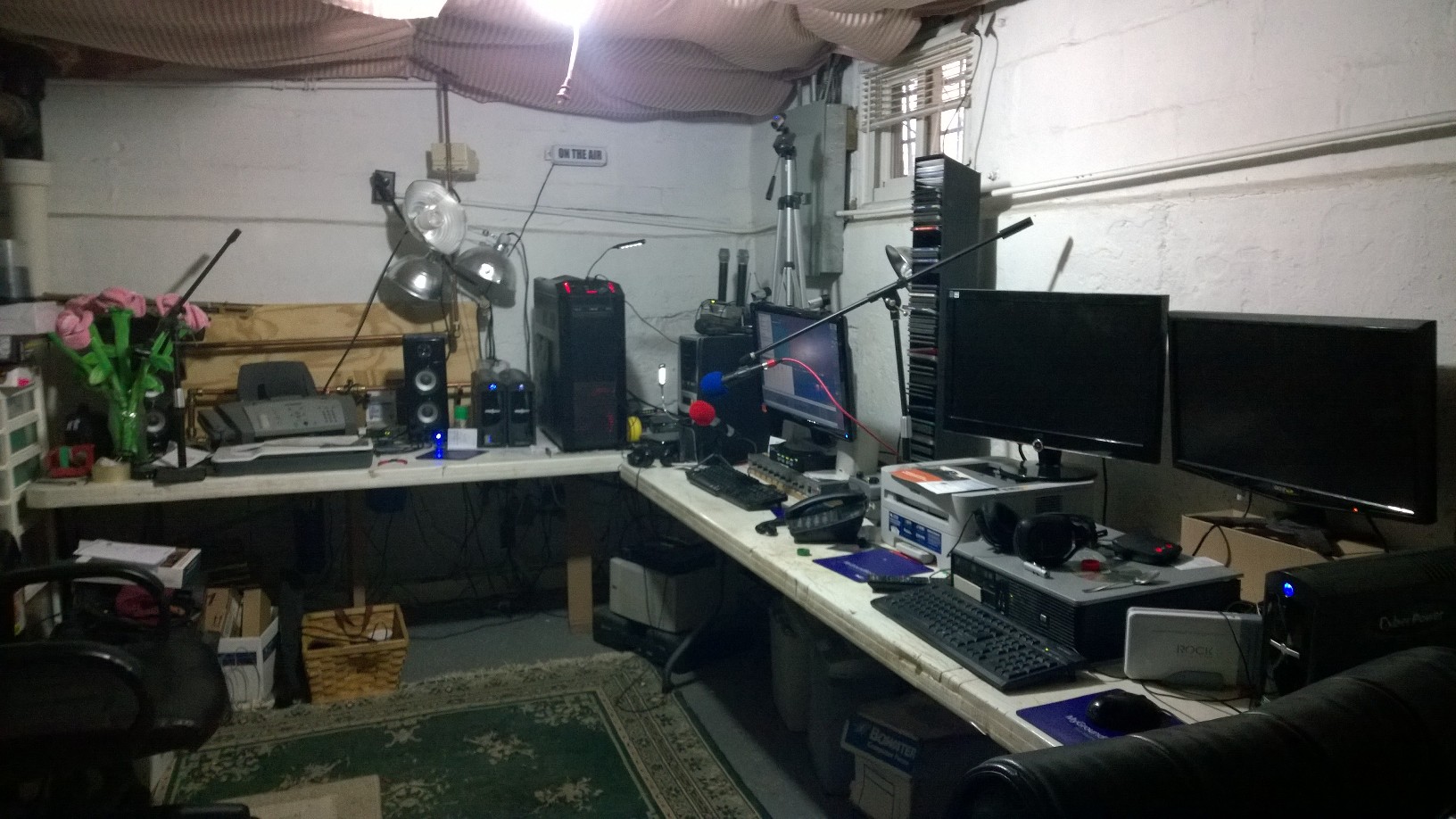

Internet Radio Equipment

1 Audio-Technica ATR2100-USB Cardioid Dynamic USB/XLR Microphone - Main talk station

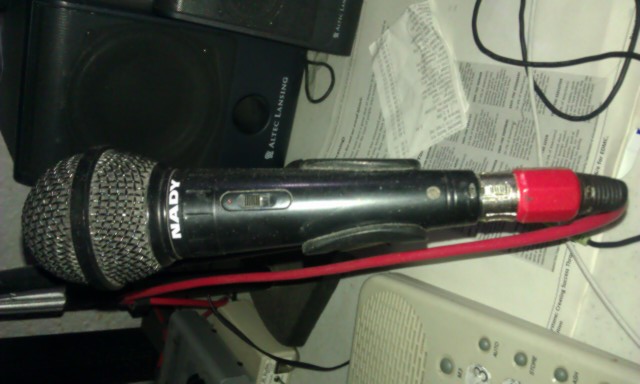

1 Nady SP-1 Starpower Mic – Guest Station

On Stage MS7920B U Base Microphone Stand – It holds the Guest Mic

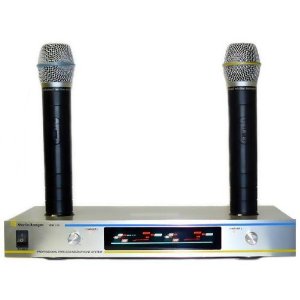

Martin Ranger WM-200 Professional Wireless Microphone System - Allow us to move around and still broadcast.

1 W Fail-Safe Long Range FM Transmitter SDA-01A

KB9VBR 2 Meter J-Pole Antenna

Specifications:

Constructed out of 1/2 inch copper tubing

Overall length 69 inches

radiator 58 inches

matching stub 19 inches

N Female connector is soldered on at the point of lowest SWR

Omnidirectional radiation pattern

Gain is about 3dbi or about 2.5dbd compared to a 1/4 wave ground plane

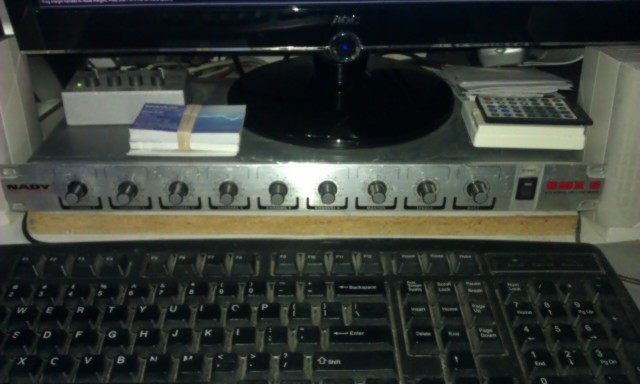

1 Nady 6 Channel Mic/line Rack Mixer - Mixes the Mics and the JK Audio Inline Patch into the computer

Pulsar High Grade Professional Microphone cables

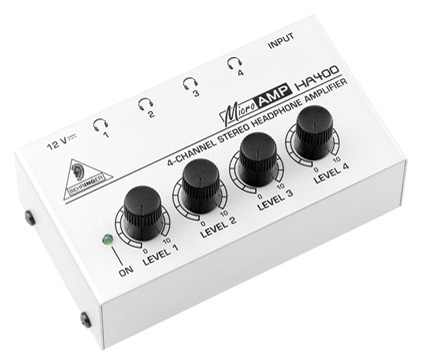

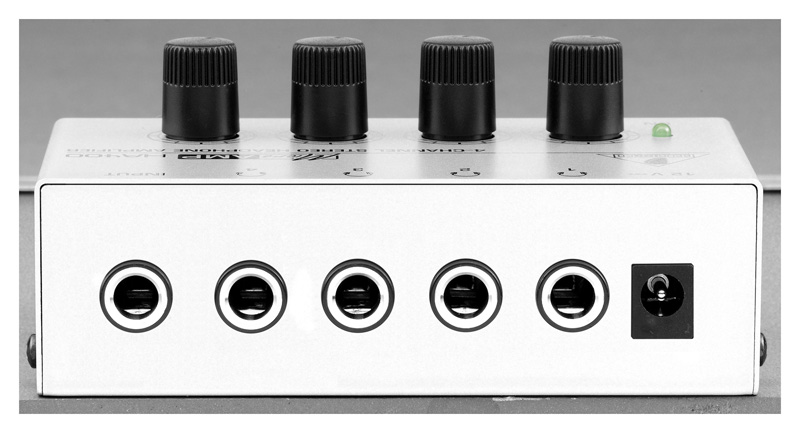

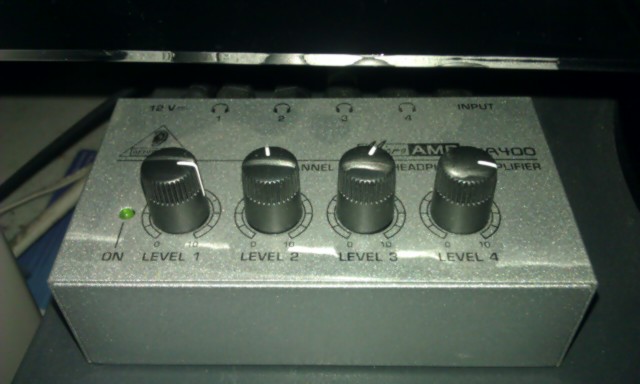

Behringer HA400 Micro Headphone Amp - Increases the line level to the headphones as the output from the computer is not enough.

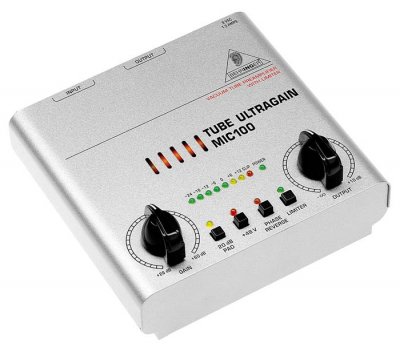

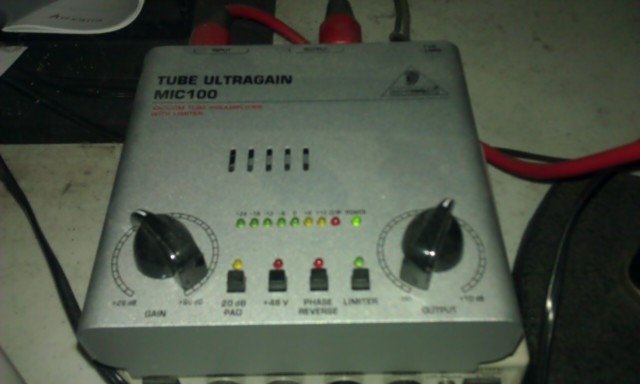

Behringer Tube UltraGain Mic 100 - Vacuume Tube Preamplifier With limiter - Each mic needs an Amp

Behringer Ultragain Pro MIC2200 - 2-channel Tube Microphone Preamplifier with 48V Phantom Power, EQ, and LED Metering

2 beyerdynamic DT 235 Headphones - Broadcast Station 1 Headphones and Security Computer for Webcam

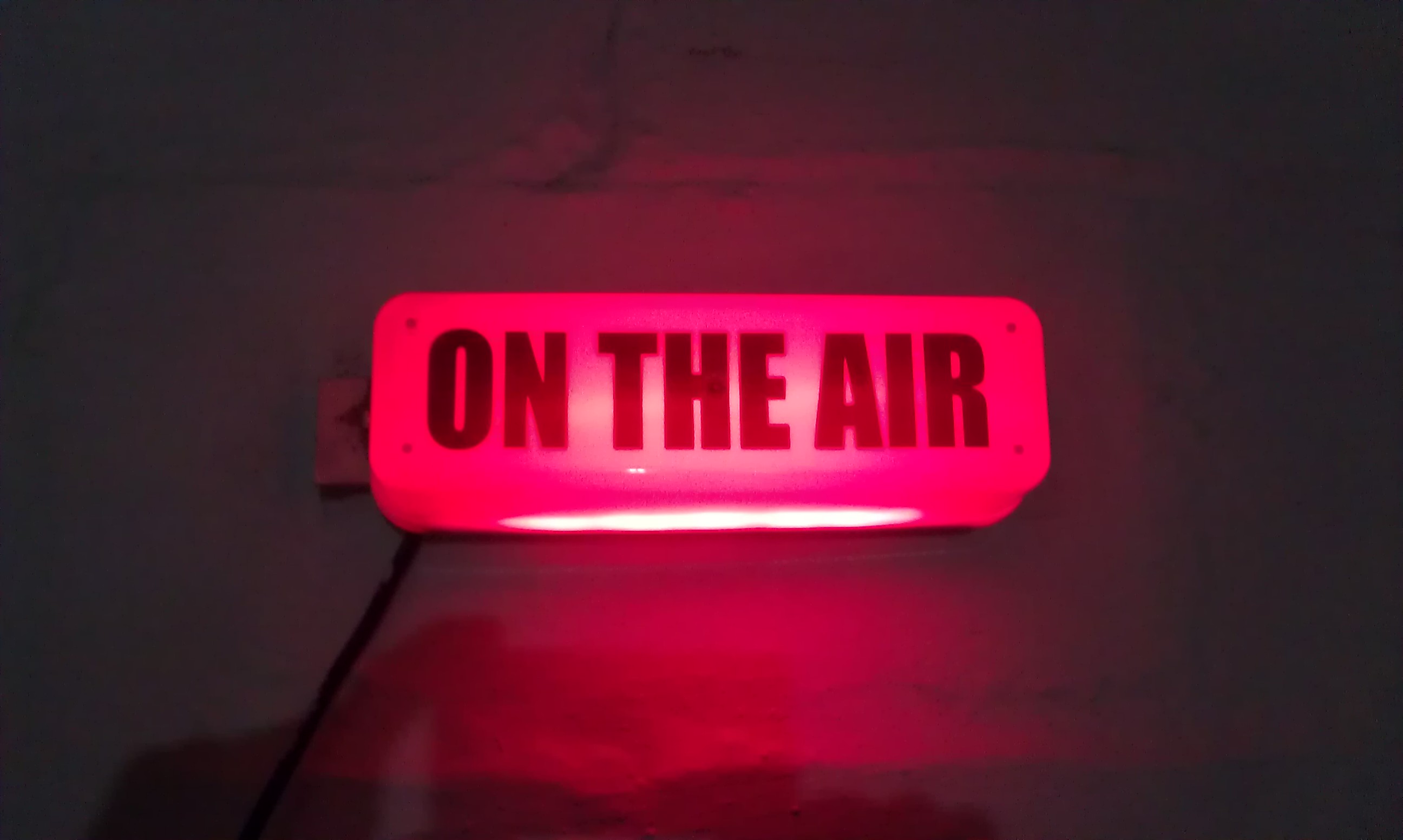

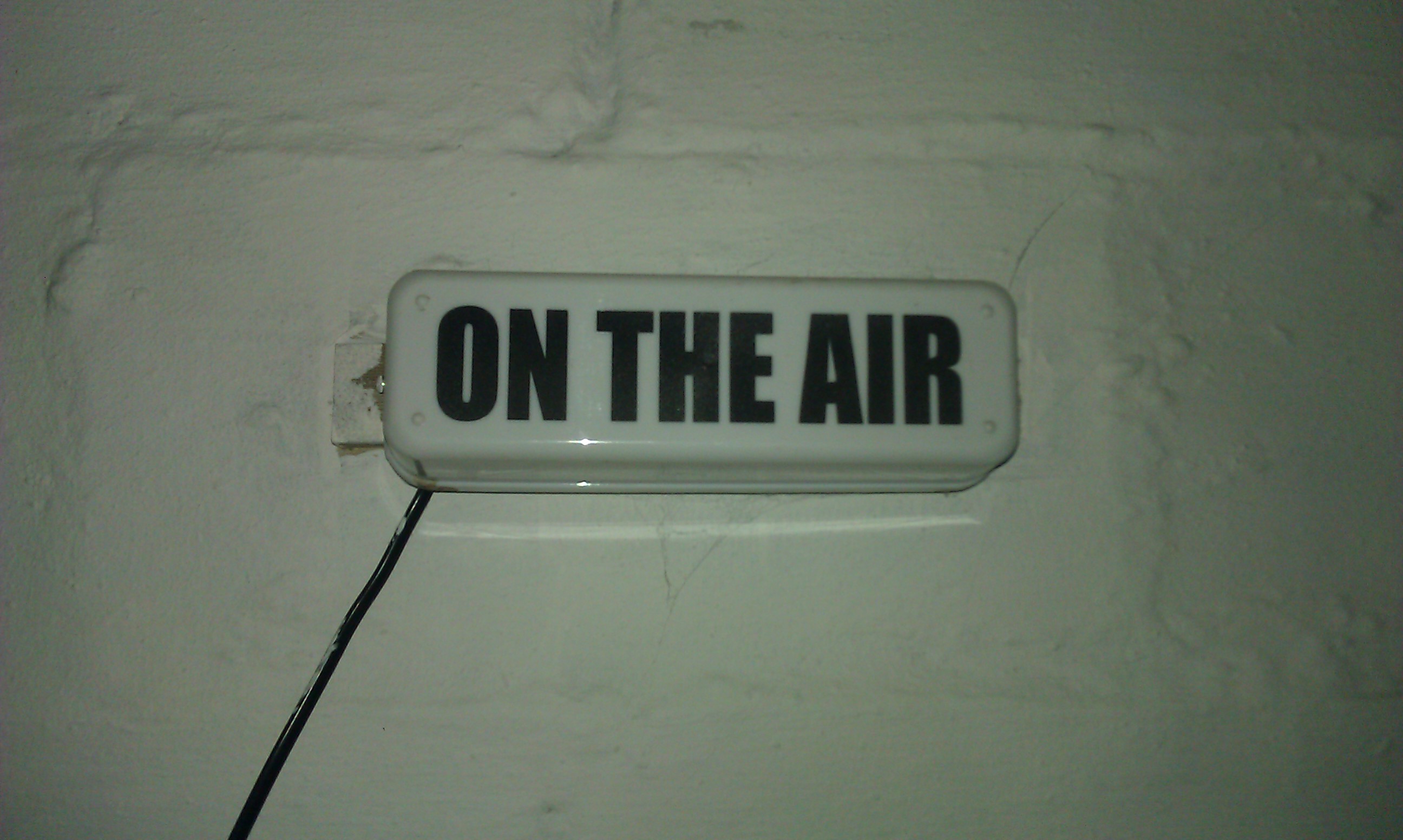

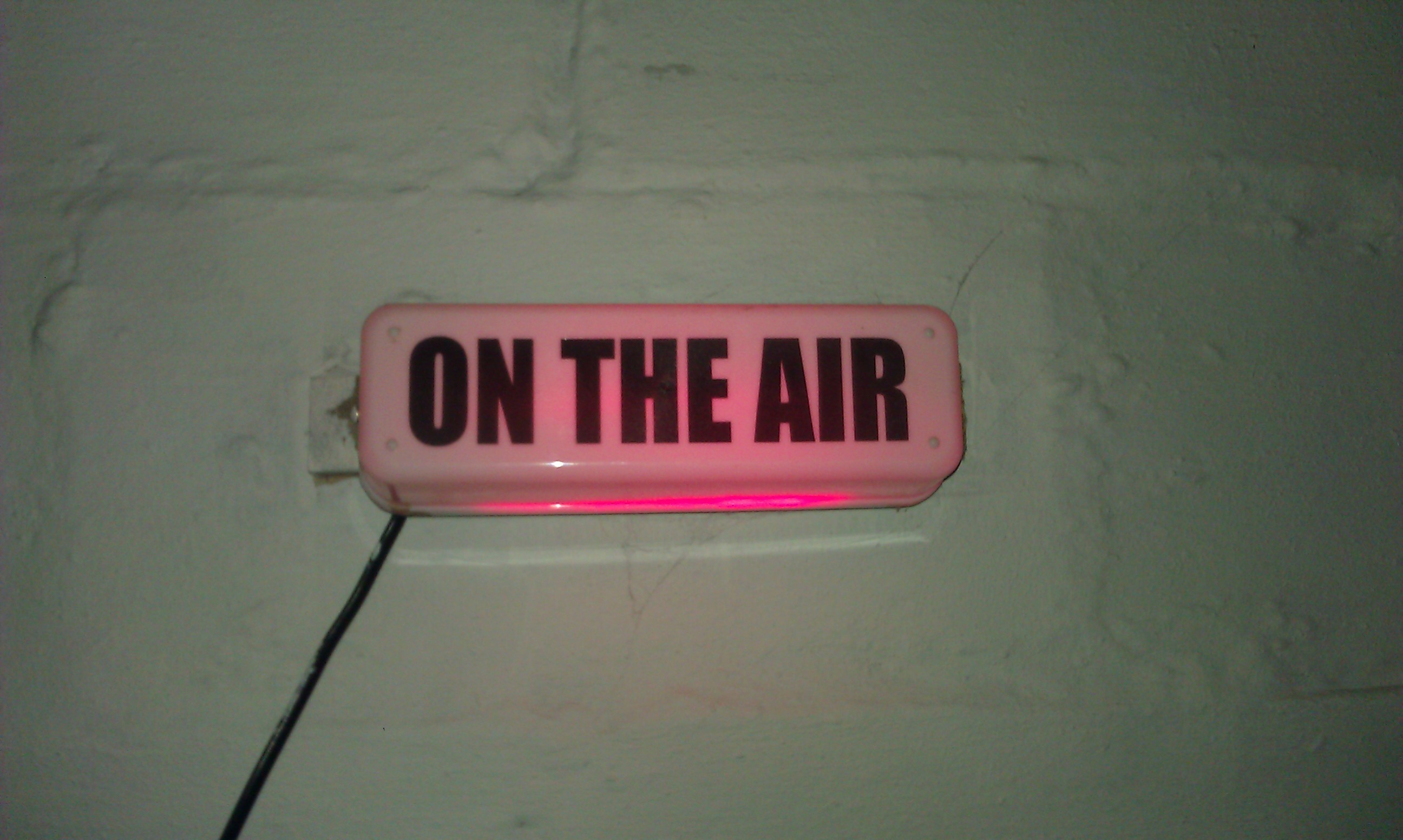

LED3 ON THE AIR LIGHT – Let people in the room know when were broadcasting live

DIGITECH VX-400 VX400 VOCAL EFFECTS PROCESSOR W/ USB – Add voice special effects to the broadcast also amps Mic 1

PCT MA2-4P Ultra-Mini 4-Port 1 GHz Bi-Directional Cable TV Amplifier – Amping the Digital signal from the Antenna on the tower.

Spare Parts...

3 Linksys Routers

2 Raspberry Pi Model B

D-Link DUB-H7 7 Port USB 2.0 Hub

Ezgrabber USB Video Capture Device

Hauppauge 950 Q WinTV HVR Hybred USB TV Stick

2 PCT MA2-4P Ultra-Mini 4-Port 1 GHz Bi-Directional Cable TV Amplifier

OCZ Technology 120 GB Vertex 2 Series SATA II 3.5-Inch Solid State Drive (SSD) OCZSSD3-2VTX120G
